Turbid

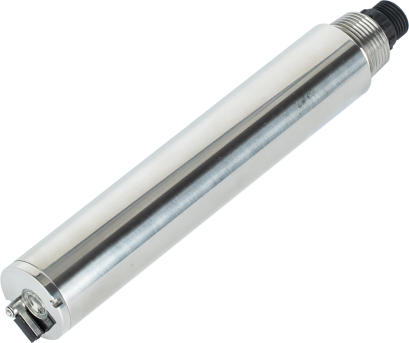

ZS-408S integrated online turbidity sensor is designed and manufactured using the principle of scattered light turbidity measurement. When a beam of light enters the water sample, the light is scattered by the turbidity material in the water sample. By measuring the scattered light intensity in the vertical direction to the incident light and comparing it with the internal calibration value, the turbidity in the water sample is calculated. degree, and output the final value after linearization. 90° angle scattered light principle, built-in temperature sensor. Support RS-485, Modbus/RTU protocol, 4-20mA current output. Optical fiber structure, strong resistance to external light interference Infrared LED light source, high stability IP68 protection, water depth within 20 meters Convenient, fast, stable and easy to maintain

ZS-206 integrated online turbidity sensor is designed and manufactured using the principle of scattered light turbidity measurement. When a beam of light is incident on a water sample, the light is scattered by the turbidity substance in the water sample, and the intensity of the scattered light in the direction perpendicular to the incident light is measured and compared with the internal calibration value to calculate the turbidity in the water sample. Degree, linearized to output the final value.

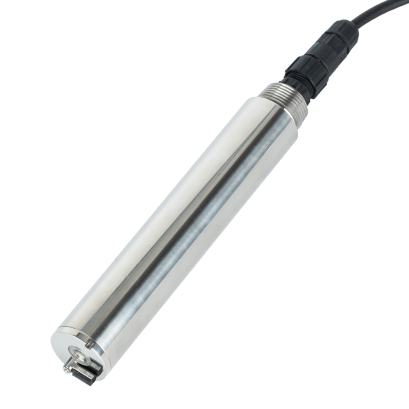

ZS-406 integrated online turbidity sensor is designed and manufactured using the principle of scattered light turbidity measurement. When a beam of light is incident on a water sample, the light is scattered by the turbidity substance in the water sample, and the intensity of the scattered light in the direction perpendicular to the incident light is measured and compared with the internal calibration value to calculate the turbidity in the water sample. Degree, linearized to output the final value. 90° angle scattered light principle, built-in temperature sensor Support RS-485, Modbus/RTU protocol Optical fiber structure, strong resistance to external light interference Infrared LED light source with high stability IP68 protection, water depth within 20 meters Convenient, fast, stable and easy to maintain

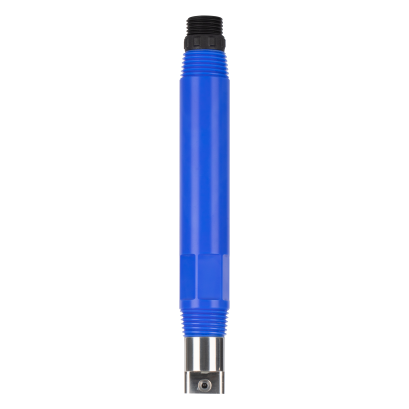

iZS-306 integral line turbidity sensor design uses the principle of scattered light produced by turbidity measurement. When the one beam is incident on water samples, water samples since the light scattering turbidity substance, by measuring the scattered light intensity of the incident light in the vertical direction, and alignment of the internal calibration value, thereby calculating the turbid water sample degree, the final processed output linearized value. 90 ° angle scattered light principle, built-in temperature sensor Supports RS-485, Modbus / RTUprotocol Fiber structure, external light anti-interference ability Infrared LED light source, high stability IP68 protection class.The water depth is within 20 meters Convenient, fast, stable, easy to maintain
